Best AvailabilityBerstscheibe

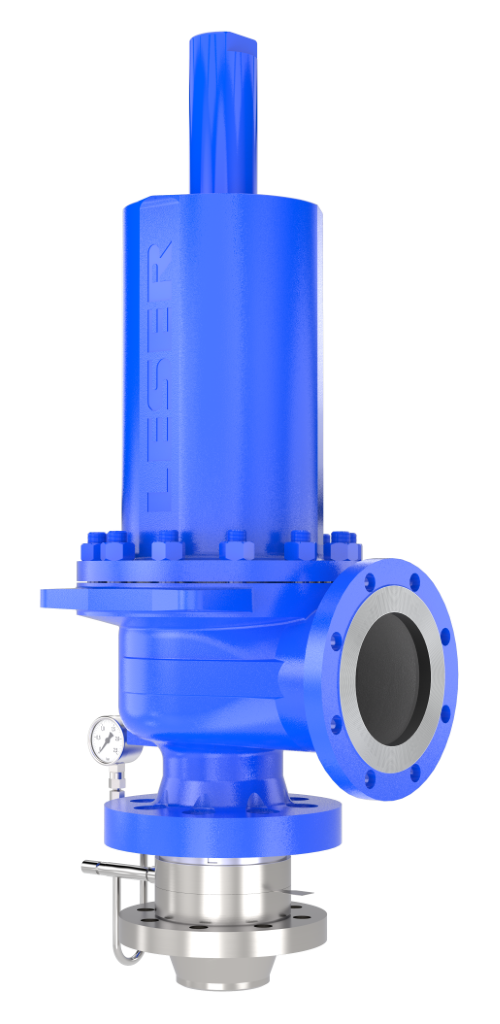

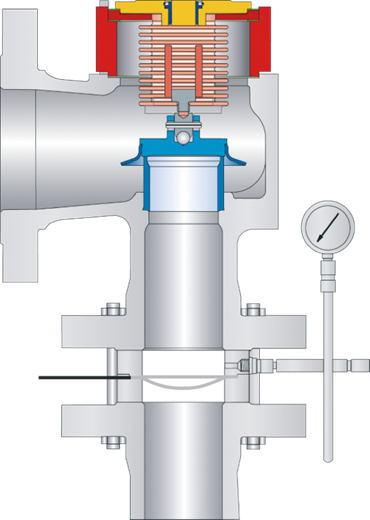

Geprüfte Kombinationen von Sicherheitsventil und Berstscheibe
- Edelstahl, Hastelloy, Inconel, Tantal, Titan, Monel
![LESER Best Availability Berstscheibe](/-/media/images/01_products/08_best-availability/leser-kub-bursting-disc-combination-berstscheibenkombination_01.png?h=1060&w=500&hash=BEF60939A3E281B4E3C45AE968CC9B74)
Geprüfte Kombinationen von Sicherheitsventil und Berstscheibe
Ansprechdruck (nach CE) | 0,2 - 200 bar |
Ansprechdruck (nach ASME) | 2,9 - 2900 psig |
Temperatur (nach CE) | -30 bis 550 °C |
Temperatur (nach ASME) | -22 bis 1.022 °F |
Anschlüsse DIN EN 1092 | DN 25 - DN 400 |
Anschlüsse ASME B16.5 | NPS 1 bis NPS 16 |
Flanschdruckstufe Eintritt DIN EN 1092 | PN 10 - PN 250 |
Flanschdruckstufe Eintritt ASME B16.5 | Class 150 - Class 1500 |
