Best AvailabilityType 320 Flow

Change-over valve for minimum pressure losses. Technical data

  • Delivery times: 6 weeks for standard configurations
  • Carbon steel and stainless steel casting
  • CE_Europa_schwarz
  • UKCA_Grossbritanien_schwarz
  • TS_Logo_China_schwarz
  • EAC_Russland_schwarz
Contact LESER Download section

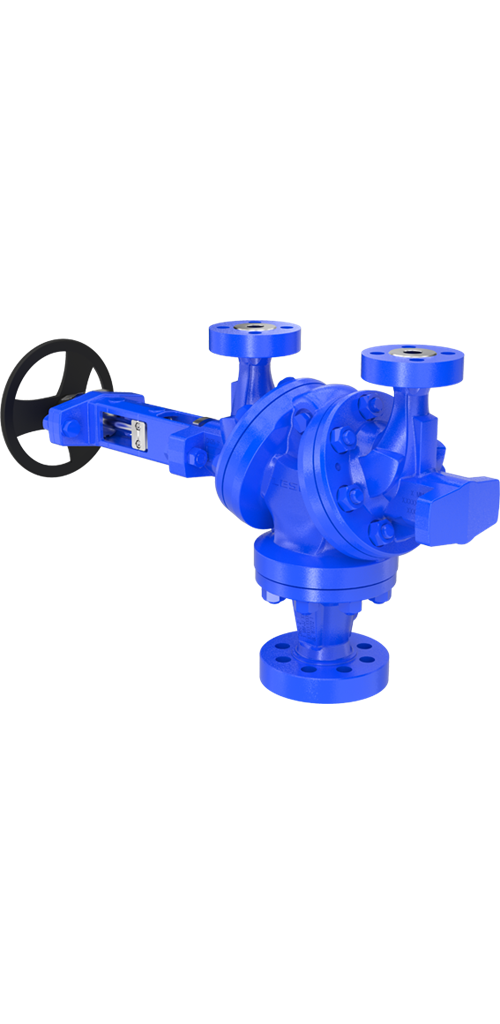

Change-over valve from LESER

Applications & Industries

  • Chemistry
  • Oil & Gas
  • Petrochemical
  • Energy
  • Technical gases


The optimal solution for:

  • Processes that cannot be stopped
  • A high level of plant availability
  • High required mass flows
  • Pressures up to 250 bar
Linde_inv Shell Deutschland Oil GmbH SEICO Heizungen GmbH

Technical Data Type 320 Flow

Temperature(according to CE) -273 - +450 °C
Temperature (according to ASME) -459 - +842 °F
Connections DIN EN 1092 DN 25 - DN 300
Connections ASME B16.5 NPS 1 to NPS 12
Flange class Inlet DIN EN 1092 PN 10 - PN 250
Flange class Inlet ASME B16.5 Class 150 - Class 1500
Body material 1.0619, 1.4408 | WCB/WCC, LCB, CF8M
Seat gasket Metallic

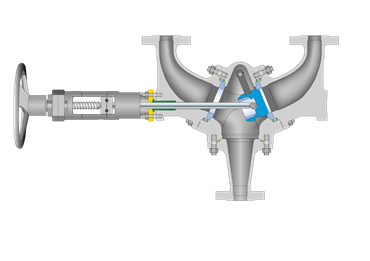

LESER Change-over valve Cutting image
