Single-port Full-lift Safety Valves
Load weights were only supplied on request and against payment.
As long as the allowed boiler pressure was only slightly exceeded, the high-lift safety valve worked like an normal safety valve. However, if the pressure continues to rise, the valve opens to the full lift.
Scholl had developed a valve which was used to connect the supply valve with the shut-off valve and was used very often. With this valve, the disc of the valve can be pressed to its seat with a screw spindle, regulating the flow. This valve could not be used as a shut-off valve according to the legal requirements.
According to Article 6(3) of the general political provisions, each steam boiler had to be equipped with a reliable device for emptying it.
Often devices were installed in the supply pipe leading to the boiler which served to add heat to the supply water before it entered the boiler; these devices were called "Borwärme". The heat to be given to the supply water was generated from the steam of the machine or from the heaters.
Safety Relief Valve with Lever

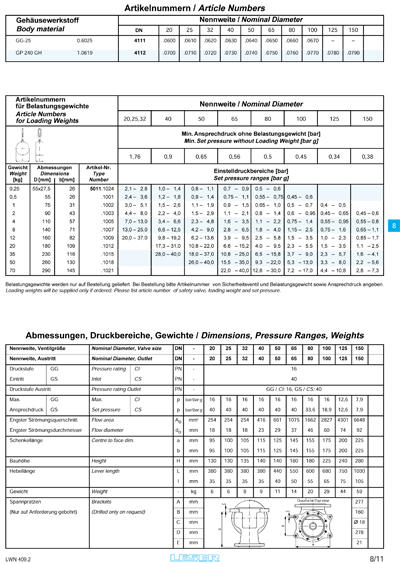

Type 411 - TÜV SV 06 - 731
Production time period 1983 to 2009
Data sheet type 411:
Full-lift Safety Valve with Lever

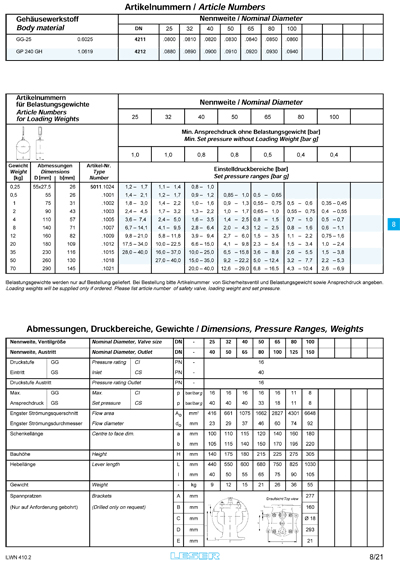

Type 421 - TÜV SV 05 - 860
Production time period 1990 to 2009
Data sheet type 421:
Double Safety Relief Valve with Lever

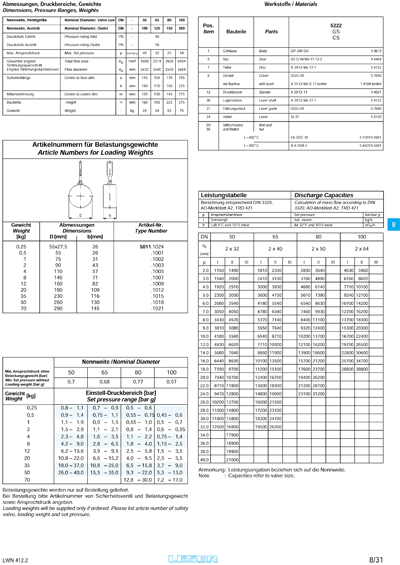

Type 522 – TÜV SV 04 - 160
Production time period 1964 to 2009
Data sheet type 522:
The first safety valves were usually equipped with a lever and weight. When the boiler became movable, i.e. locomotives went on a journey with it, a compression spring was not used as today, but a tension spring was used instead of the weight: The spring balance placed in a brass housing.
Spring balance installed on a steam boiler:
