Technical specifications Type 462 HDD

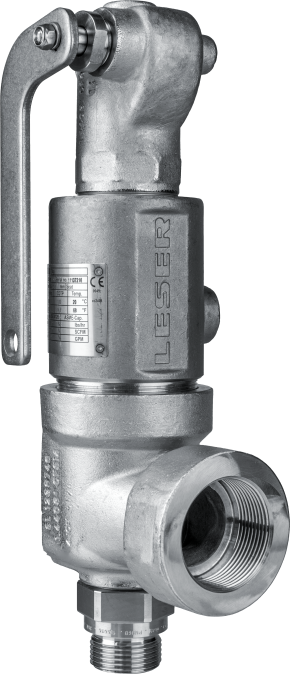

- Nominal Diameter Inlet - Thread
- 1/2" - 1“ | 1/2" - 1“

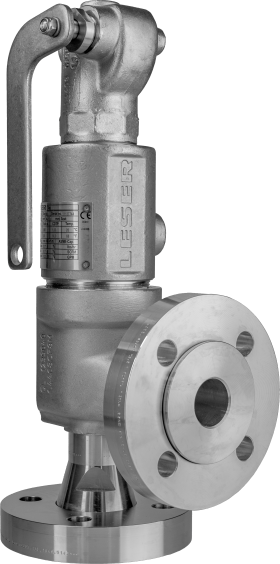

- Nominal Diameter Inlet - Flange
- DN 15 - DN 25 | 1/2" - 1"
- Actual Orifice Diameter d₀
- 9 mm | 0.354 in
- Actual Orifice Area A₀
- 63.6 mm² | 0.099 in²
- Pressure
- 250.01 - 350 bar | 3626 - 5076 psig
- Flange Rating Inlet
- PN 320 - PN 400 | CL1500 - CL2500
- Temperature (in accordance with DIN EN)
- -45 to 150 °C | -49 to 302 °F
- Temperatur (nach ASME)
- -45 to 150 °C | -49 to 302 °F
- Material Outlet Body
- 1.4408 | SA 351 CF8M
- Material inlet body
- 1.4404 | SA 479 316L
- Valve Connection
- Thread acc. to DIN ISO 228-1, ISO 7-1 / BS 21 or ASME B1.20.1, Flange acc. to DIN EN 1092-1 or ASME B16.5
- Bellows Material (optional)
- Stainless steel
- Load Type
- Spring loaded
- Approvals
- PED/ DIN EN ISO 4126-1, AD 2000-Merkblatt A2, ASME Sec. VIII Div. 1, CRN, EAC, AQSIQ, SAMR
- Classification societies
- LR, DNV GL, BV, ABS
