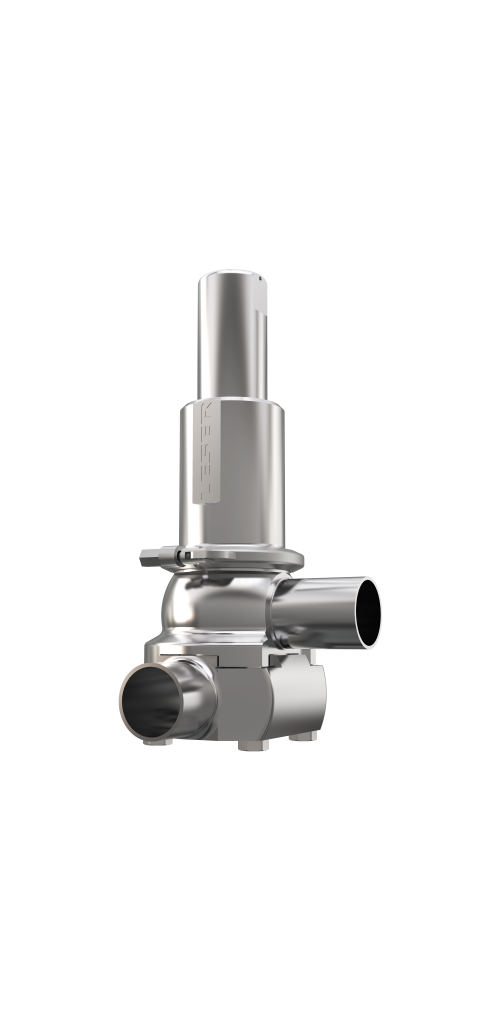

Clean ServiceType 485
Safety valve with pipeline integration for safeguarding high-purity applications.. Technical data
- Suitable selection of aseptic connections for your plant with a delivery time of 2 weeks
Safety valve with pipeline integration for safeguarding high-purity applications.. Technical data
| Set pressure(according to ASME) |
1 – 16 bar | 15 – 232 psig |
| Set pressure(according to CE) | 0.1 - 16 bar | 1.5 - 232 psig |
| Temperature(according to DIN EN) |
-45 to 150 °C | -49 to 302 °F |
| Temperature(according to ASME) | -45 to 150 °C | -49 to 302 °F |
| Capacity | orifice D- to F- |
| Connections DIN/ISO |
DN 25 - DN 50 |
| Connections ASME |
NPS 1 to NPS 2 |
|
Flange class Inlet DIN |
PN 16 |
|
Flange class Inlet ASME |
Class 150 |
| Body material |
1.4435 (BN2) | SA 479 316L |
| Narrowest flow diameter d₀ | 13 - 25 mm | 0.512 - 0.984 in |
| Narrowest flow area A₀ | 133 - 491 mm² | 0.206 - 0.761 in² |
| Bellows material | EPDM |
| Seat gasket | O-ring |
